PI by TransSiP Harmony PI Filter TSNJ-5A6L26

DC power at the intrinsic noise floor.

One passive 2.2 × 2.6 mm part and two 47 µF capacitors take switching noise, spurs and jitter off a DC rail, from DC to 6 GHz, and up to 20 GHz in a dual configuration.

Switching noise entering a Harmony PI Filter and leaving as a flat rail A red, spiky switching-noise trace runs from the left into the Harmony chip, drawn to scale with its real top marking. A flat yellow line leaves it to the right. TSNJ A4WW TransSiP VIN: switcher output VOUT: at the noise floor

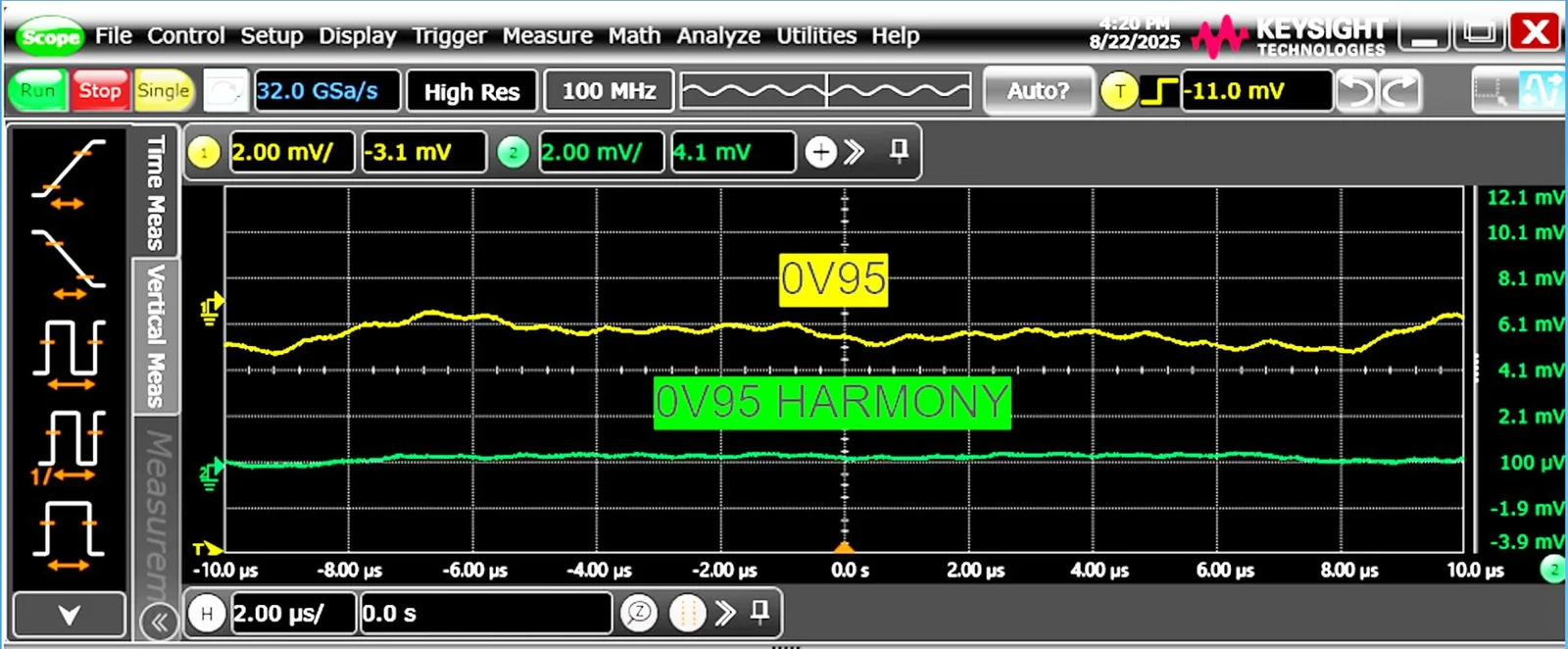

Ripple before
10 mVp-p
Ripple after
4.48 µVp-p
Reduction
2,232×
Measured on

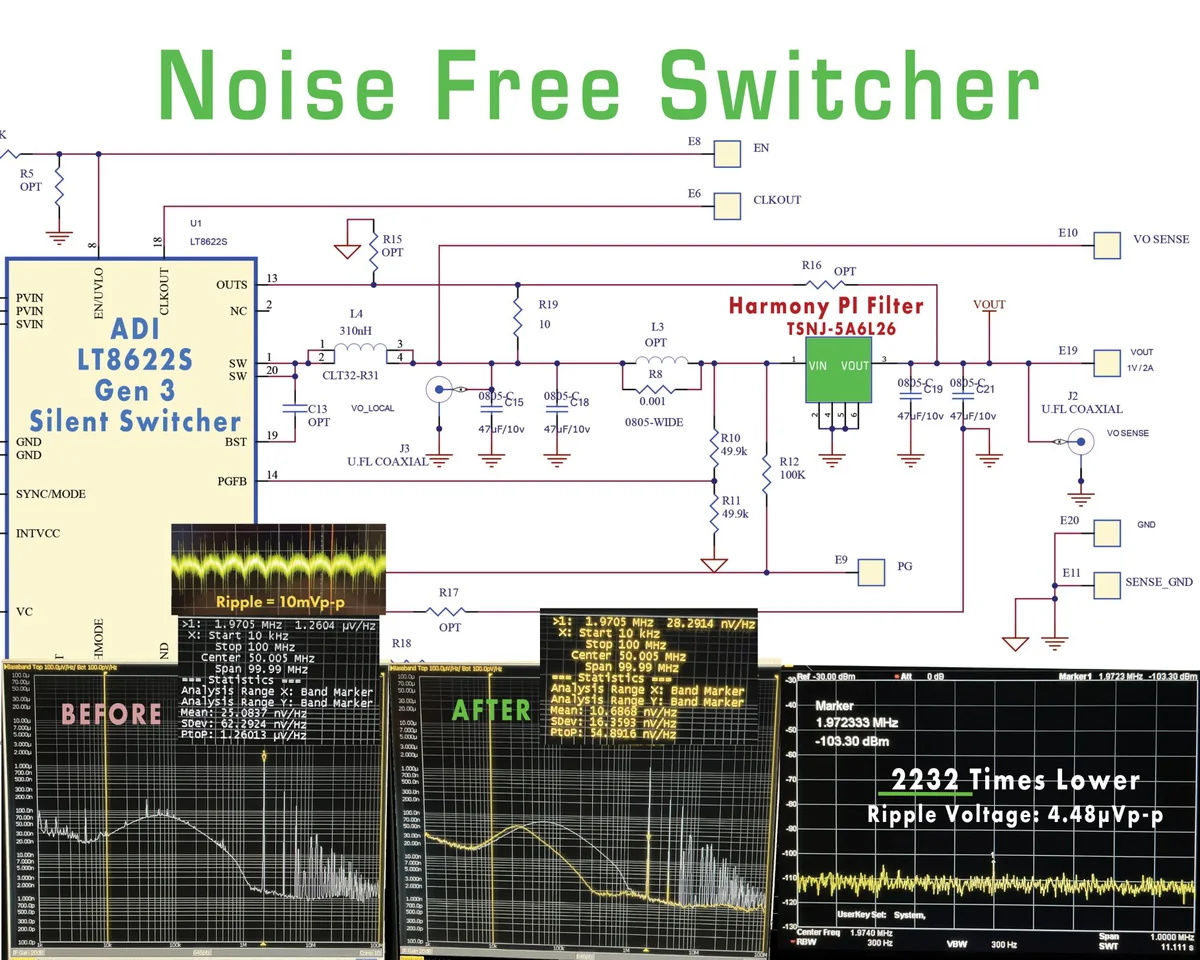

ADI LT8622S Silent Switcher at 1 V, 2 A, with Harmony Type-B. See the poster

One part. One circuit. Every rail.

Harmony and two 47 µF capacitors at VOUT make the Type-B configuration. It replaces the ferrite bead and the capacitor bank. It can even replace LDO post-regulation, when a switcher’s intrinsic noise floor (typically 6 to 70 µVp-p) is already low enough for the application. It is the same Type-B configuration on every rail, and you don’t need any small-value capacitors. Need more current drive? Add more bulk capacitors to deliver the energy at high speed.

15 → 3parts, against TI’s 6 GHz filter
93%less filter area: 112 to 7.7 mm²
20 GHzwith two Type-B stages in series
Type-B configuration: one Harmony PI Filter and two 47 µF capacitors An isometric drawing of a red circuit board. The rail enters at VIN, passes through the Harmony PI Filter, and continues to VOUT, where two 0805 capacitors connect it to ground. Rows of ground vias surround the filter. TSNJ A4WW TransSiP Harmony PI Filter TSNJ-5A6L26, 2.6 × 2.2 × 0.9 mm Two 47 µF, 10 V 0805, at VOUT VIN VOUT Ground stitching vias around every GND pad

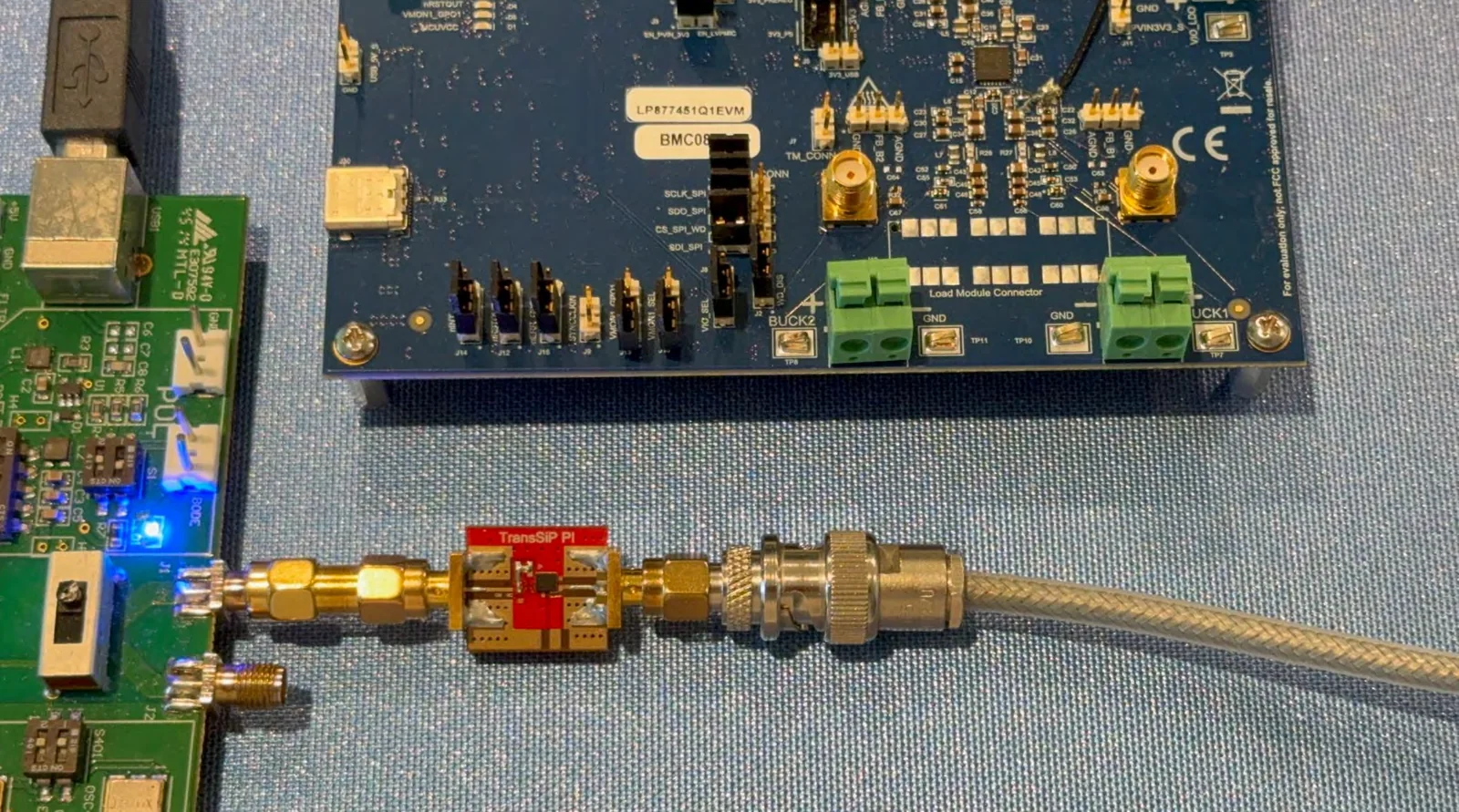

Measured on the bench.

Every curve is plotted from real instrument marker readings in our datasheet and lab reports. The caption under each chart names the instrument, the setup and the source document.

Insertion loss (S21), 30 kHz to 20 GHz

  • Harmony alone (native)
  • Type-B: Harmony + two 47 µF
  • Dual Type-B, two EVBs in series
Insertion loss (S21), 30 kHz to 20 GHz Lines join the instrument marker readings on a log axis. Between 2 MHz and 500 MHz the Type-B trace sits on the network analyzer’s own noise floor, so the true attenuation there is deeper than the plot can show, below the noise floor of most instruments: about −120 dB with a single Type-B, and −140 to −160 dB with dual Type-B. Conventional capacitor networks reach 80 to 90 dB at best. 10 kHz 100 kHz 1 MHz 10 MHz 100 MHz 1 GHz 10 GHz -110 dB -90 dB -70 dB -50 dB -30 dB VNA noise floor, about −100 dB Harmony alone (native): -31.7 dB at 30 kHz Harmony alone (native): -61.6 dB at 1 MHz Harmony alone (native): -86.5 dB at 13 MHz Harmony alone (native): -52.1 dB at 1 GHz Harmony alone (native): -37.0 dB at 6 GHz Type-B: Harmony + two 47 µF: -50.0 dB at 30 kHz Type-B: Harmony + two 47 µF: -81.8 dB at 900 kHz Type-B: Harmony + two 47 µF: -99.5 dB at 2 MHz Type-B: Harmony + two 47 µF: -97.5 dB at 500 MHz Type-B: Harmony + two 47 µF: -80.6 dB at 1.6 GHz Type-B: Harmony + two 47 µF: -58.5 dB at 6 GHz Dual Type-B, two EVBs in series: -83.1 dB at 1 GHz Dual Type-B, two EVBs in series: -84.1 dB at 6 GHz Dual Type-B, two EVBs in series: -62.2 dB at 10 GHz Dual Type-B, two EVBs in series: -51.4 dB at 20 GHz

Lines join the instrument marker readings on a log axis. Between 2 MHz and 500 MHz the Type-B trace sits on the network analyzer’s own noise floor, so the true attenuation there is deeper than the plot can show, below the noise floor of most instruments: about −120 dB with a single Type-B, and −140 to −160 dB with dual Type-B. Conventional capacitor networks reach 80 to 90 dB at best.

Source: Datasheet TSNJ-DS-R009; Noise Free Innovations 26V2, p. 6

The same suppression on any source and load

This attenuation profile holds, or gets better, whatever the source and load impedance. Many power filters reach their rated attenuation only in a matched 50 Ω test, and fall short on a real power rail.

Not capped by the dB on this chart

Harmony removes supply noise until only the true intrinsic noise floor of the power source or system is left. On ADI’s LT8622S Silent Switcher, it revealed a noise floor 20 dB lower than the ADI datasheet shows.

Results from the lab and the field.

From a 15 fs clock for AI optics to a bracelet that runs on body heat. Each result comes with its setup.

All 15 case studies

Order direct, from one piece to full reels.

Buy cut strip from one piece or full reels of 3,000 straight from TransSiP. Volume quotes come back with price and lead time.

In stock and shipped direct from TransSiP. Also at DigiKey (US website): 5,332 in stock as of Oct 24, 2026.

Anything that listens, times or converts.

AI data center, optics and compute

Supply noise turns into jitter on every clock and data edge. Quiet rails mean timing margin for TIAs, laser drivers, SerDes, DDR and HBM.

How Harmony helps

Wireless, 5G and RF front ends

Supply noise becomes phase noise and spurs. Filter the oscillator and front-end rails, and a commodity supply behaves like a lab bias.

How Harmony helps

GNSS and positioning

Satellite signals arrive below the noise floor. Clean supplies cut worst-case error tenfold and keep tracks on the trail.

How Harmony helps

Precision analog and ultra-low-noise LDOs

A further 10 to 20 dB below an LDO’s own noise floor, including its 1/f region, goes straight into SNR for ADCs, DACs, audio and sensors.

How Harmony helps

Power conversion and PDN design

Keep the switcher’s efficiency and drop the LDO post-regulator. Switcher ripple falls from millivolts to microvolts.

How Harmony helps

Biomedical and optical sensing

A wrist-worn heart-rate monitor with one LED and one detector matched a chest strap once its bias was clean.

How Harmony helps

Space, defense and quantum

Mission-critical radios, satellites and cryogenic electronics need clean rails and very few parts.

How Harmony helps

Verified outside TransSiP.

Nokia Bell Labs

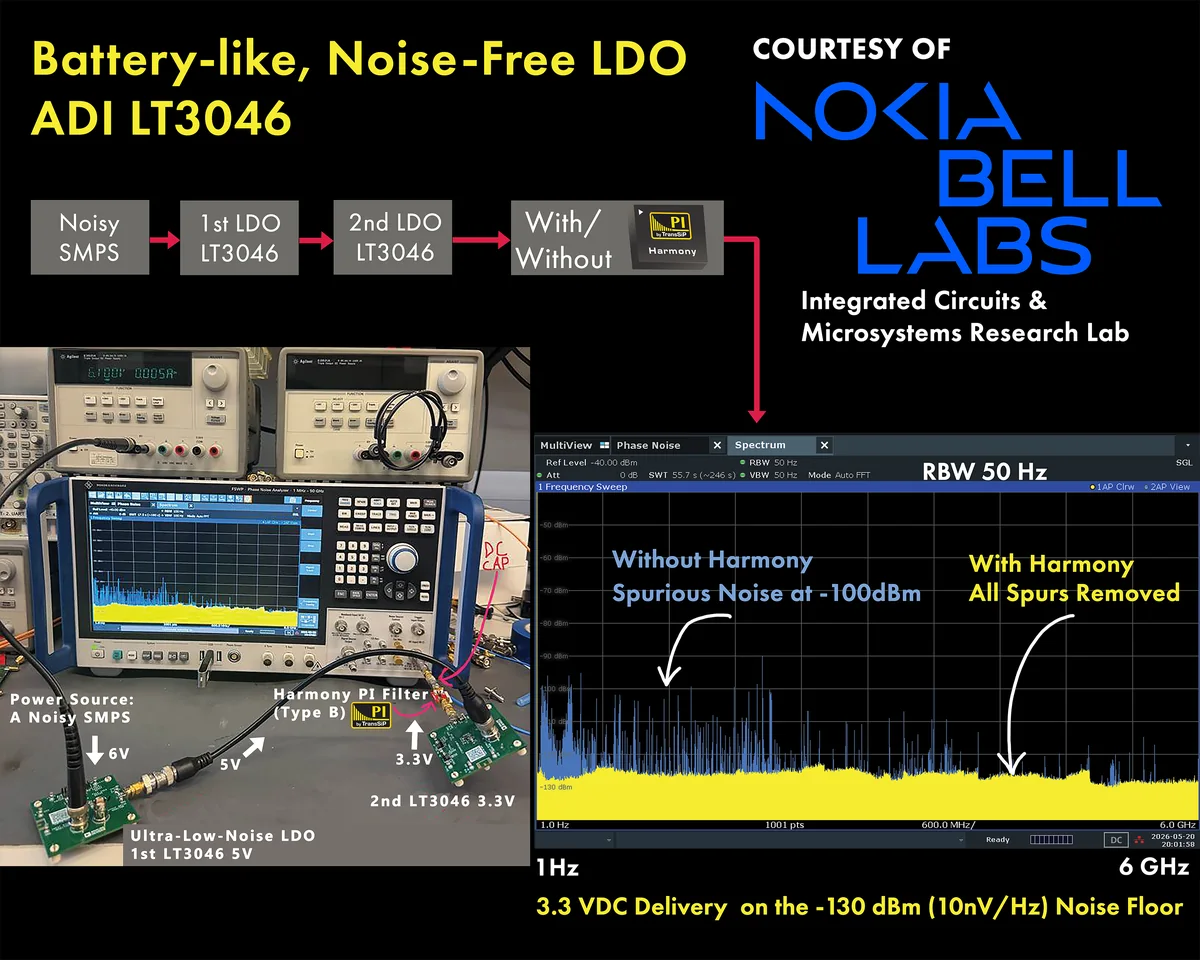

Took two ADI LT3046 LDOs to a −130 dBm floor with Harmony, and measured the TPS7A94 + Harmony noise floor with TransSiP. Dr. Shahriar Shahramian demonstrated Harmony at IMS 2025.

Rohde & Schwarz and MACOM

Experts verified the dual Type-B noise suppression from 100 kHz to 20 GHz on an R&S ZNB.

Keysight and Analog Devices

Collaborated on the noise-free LT8622S Silent Switcher measurements.

NYU WIRELESS

Published a 12.5 dB supply-noise reduction for a BLE receiver at IEEE WiSNeT 2025.

u-blox

“TransSiP PI enhances the capability of GNSS.” Partner on the PowerWatch 2 no-charge GNSS smartwatch.

Tektronix

Published the case study “TransSiP Breakthrough Insight into Power Conversion Switching Noise.”

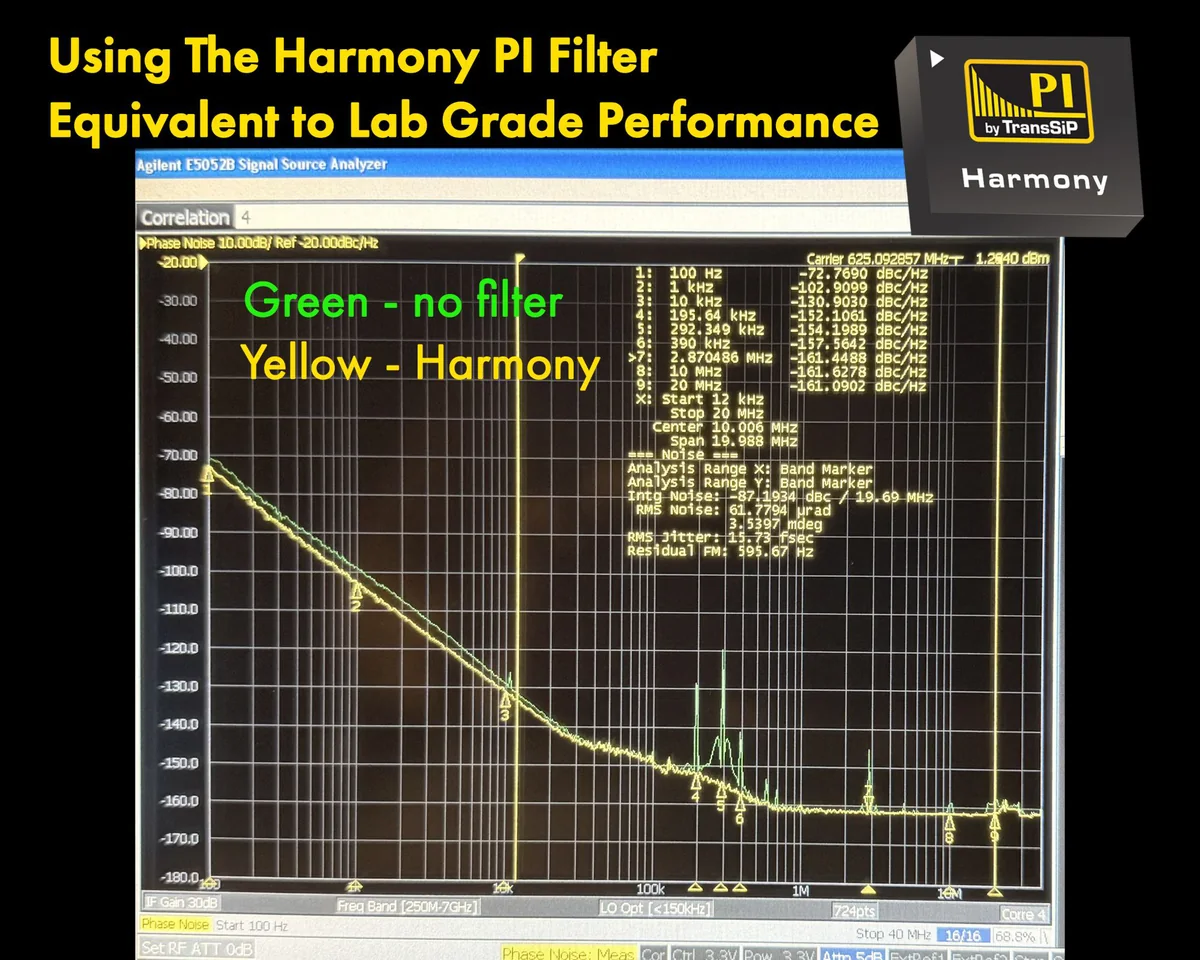

Rakon have tested TransSiP’s noise reductions technology with our ultra-low noise oscillators and the results are truly impressive.

Brent Robinson, CTO and Managing Director, Rakon

See it on the bench.

IMS 2025: Harmony noise-free filter demo by Dr. Shahriar Shahramian

Dr. Shahriar Shahramian, Director of the ASICs & Packaging Research Lab at Nokia Bell Labs and founder of The Signal Path, demonstrates the TSNJ-5A6L26.

LT8622S switching noise, part 2: the Silent Switcher becomes noise-free

Silent Switcher EMI, part 2: one filter at the point of load
